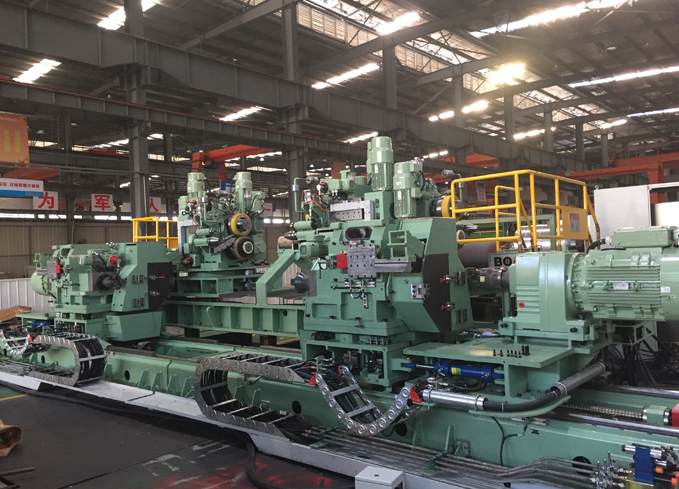

Non-ferrous Side Trimmer for Cold Rolling Mill

Non-ferrous Side Trimmer for Cold Rolling Mill

Efficiency and cutting quality are our two most important indicators. The trimming machine provided by BOYA is at the first-class level in terms of mechanical design rationality, equipment structure rationality, tolerance distribution rationality, mechanical manufacturing accuracy, assembly processability, and electrical control accuracy. This allows us to achieve higher efficiency at a faster cutting speed while ensuring high precision.

Contact Us

Application Scope of Non-ferrous Side Trimmer for Cold Rolling Mill


Material

Strip thickness

Strip width

Tensile strength

Shear rate

High-strength steel and ordinary steel

0.1-3.0mm

500-2300mm

≤1600MPa

≤600m/min


Structure Advantage of Non-ferrous Side Trimmer for Cold Rolling Mill


  • A single-side shearing knife box of the disc shears is used for one use and one standby,which is able to be witched through the rotary mode with a quick speed so that the unit can change the tool with a quick speed without stopping the machine.

  • A tool change and maintenance platform is equipped in the disc cutter, which can reach online tool change and the maintenance of the spare tool box.

  • The end face grinding method is used in disc knife, the hydraulic nut is locked, the upper knife adopts the front rigid positioning, and the lower knife adopts the rear rigid positioning, which can greatly improve the convenience of equipment operation and maintenance and reduce the ineffective consumption of spare parts.

  • Equipped with cutter cleaning device and scraper mechanism, it can guarantee and prolong the service life of the disc blade.

  • Products integrated electromechanical and hydraulic control, equipped with reliable Siemens control system and optimized process adjustment template, which can effectively ensure stable product quality.
